Wood rod milling machine
TA 30

Wood rod milling machine
TA 30

Trafila per produzione tondi in legno - TA 30

Trafila per produzione tondi in legno - TA 30

Trafila per produzione tondi in legno - TA 30

Trafila per produzione tondi in legno - TA 30

Request info

Milling machine for wooden sticks production

Automatic feed machine to produce small and medium quantities of STRAIGHT wooden rods, having diameters range from 6 to 30 mm.; this unit works with fix diameter tools, to be replaced per each size and by mounting a specific equipment is possible to make round rods with helicoidal fluting up to max diameter 18 mm.,to obtain dowels for furniture components or windows and doors frames.

Average productivity of this unit is around 4 mt/minute.

Technical data:

Minimum diameter: 6 mm.
Maximum diameter: 30 mm.
Minimum lenght: 350 mm.
Maximum lenght: unlimited
Productivity: 1/4 mt./min.
Motors voltage: 400V/50 Hz.
Tool rotation motor: 1,5 Kw.
Feed motor: 0,22 Kw.

Video:

Wood rod milling machine - TA 30 accessories:

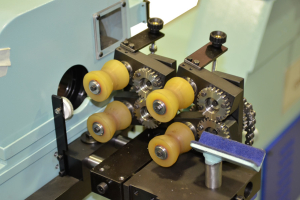

Powered Feed Rollers Wood Rod Milling Machine TA 30

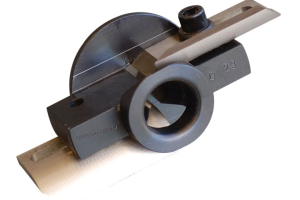

Knurling Tool Wood Rod Milling Machine TA 30

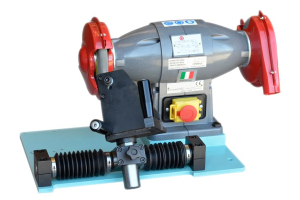

Acs Knives Resharpening Machine Wood Rod Milling Machine TA 30

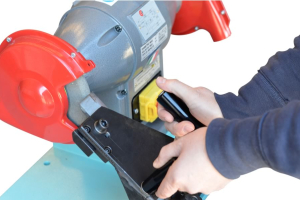

Knife Holder For Resharpener Wood Rod Milling Machine TA 30

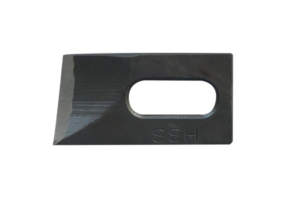

Knife For Doweling Tool Wood Rod Milling Machine TA 30

Machine - TA 30 is suitable for production of:

Shafts For Wood Arrows

Shafts For Wood Arrows

Umbrella Sticks

Umbrella Sticks

Wood Arrows

Wood Arrows

Wood Bars

Wood Bars

Wood Dowels

Wood Dowels

Wood Rods

Wood Rods

Wood Sticks

Wood Sticks

Wooden Rod

Wooden Rod

Wooden Toys

Wooden Toys
