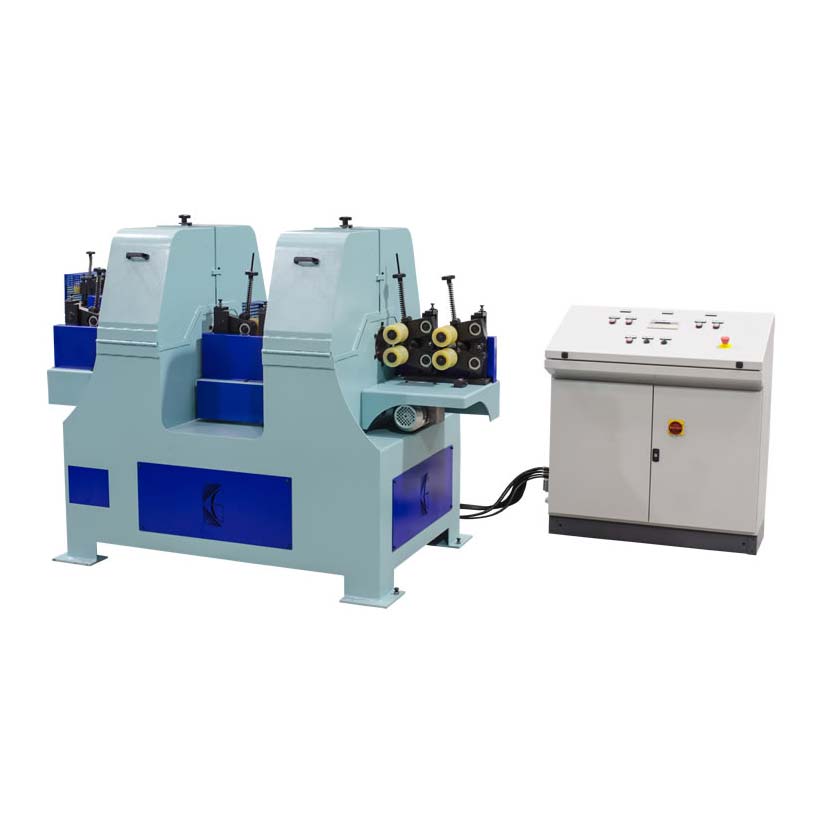

Double head sander for wooden rods

Orbital sanding line with abrasive belts, consisting in n°2 LT130 units, suitable for sanding and finishing operations on STRAIGHT parts having round, oval, elliptical or irregular section made of wood, bamboo, rattan, plastic materials and metal.

First unit is equipped with abrasive belts for sanding operations while on second unit are mounted abrasive belts for finishing operations.

A.m. line is suitable for parts with max. diameter 127 mm. and is equipped with double SELFCENTERING front/rear feed system, for taper and shaped parts with min. length 680 mm..

Particularly suitable to sand, prepare for painting and lacquering curtain rods, straight handles for agricultural tools, handrails, sports appliances, furniture components, taper poles and boat masts.

According  to  specific requirements  is  also  possible  to  customize  such automatic  line  with  extra  equipment  or  special  purpose  machinery for  further processings that  will be  designed, engineered  and  manufactured  from  our  company  to accomplish  such  tasks.

Technical data:

• Minimum diameter (with special feed rollers): 10 mm.
• Maximum diameter: 127 mm.
• Minimum length: 680 mm.
• Productivity: 1/20  mt/min.
• Disc motors:  2,2 + 2,2 Kw
• Abrasive belts motors:  5,5 + 5,5 Kw
• Feed motors: 0,25 + 0,25 + 0,25 Kw
• Abrasive belts size: 2000 x 120 mm.
• Standard voltage: 400V/50 hz.
