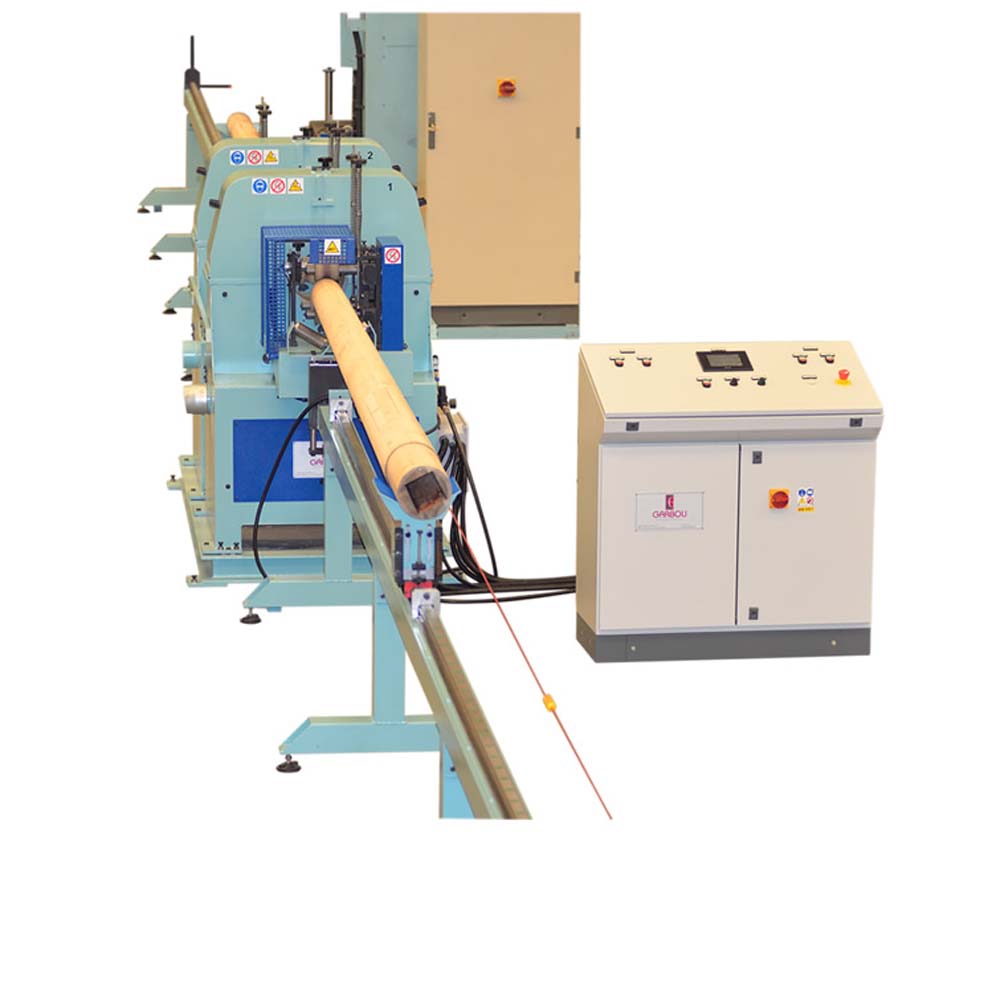

Twin head sanding machine for wooden poles

Orbital sanding line with abrasive belts, consisting in n°2 LT200 units, suitable for sanding and finishing operations on STRAIGHT parts having round, oval, elliptical or irregular section made of wood, plastic materials and metal.

First unit is equipped with abrasive belts for sanding operations while on second unit are mounted abrasive belts for finishing operations.

A.m. line is suitable for parts with max. diameter 219 mm. and is equipped with SELFCENTERING front/rear feed systems for taper and shaped items with minimum length 650 mm..

Particularly suitable to sand debarked beams as well as prepare for painting and lacquering taper poles, boat masts, fencing  poles, outdoor furniture and playset components.

According  to  specific requirements  is  also  possible  to  customize  such automatic solution  with  extra  equipment  or  special  purpose  machinery for  further processes that  will be  designed, engineered  and  manufactured  from  our  company  to accomplish  such  tasks.

Technical data:

• Minimum diameter (with special feed rollers): 10 mm.
• Maximum diameter: 219 mm.
• Minimum length: 650 mm.
• Productivity: 1/20  mt/minute
• Disc motors: 2,2 + 2,2 Kw.
• Abrasive belts motors: 11 + 11 Kw
• Feed motors: 0,25 + 0,25 + 0,25 Kw
• Abrasive belts size: 1975 x 120 mm.
• Standard voltage: 400V/50 Hz.
