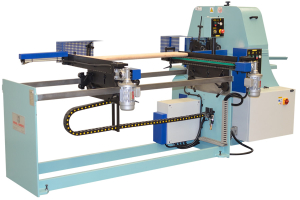

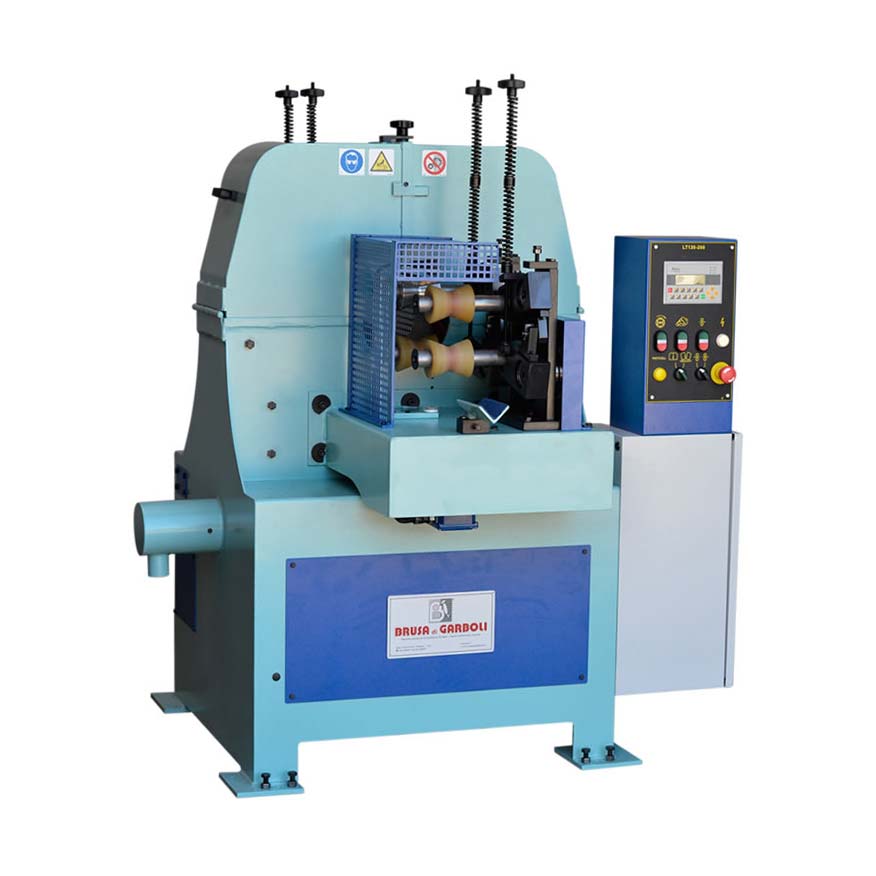

Belt sander for wooden bars and poles

Planetary sanding machine with abrasive belts for high volume requirements in  which the workpiece DOES NOT ROTATE while abrasive belts spin around it, making  it particularly  suitable for sanding and finishing operations on straight, slightly bent, taper or shaped parts having round, oval, elliptical or irregular section, made of wood,  plastic materials and metal.

A.m. machine allows sanding operations on parts with max. diameter 219 mm. and is equipped with  SELFCENTERING front and rear feed system, suitable for taper and shaped parts.

This  unit  enables to sand debarked beams, irregular shafts, taper  poles, fencing poles,  outdoor furniture  and  play sets components.

Technical data:

• Minimum diameter (with special feed rollers): 10 mm.
• Maximum diameter: 219 mm.
• Minimum length: 650 mm.
• Productivity: 1/20 mt./min.
• Disc motor: 2,2 Kw.
• Abrasive belts motor: 11 Kw.
• Feed motor: 0,25 Kw.
• Abrasive belts size: 1975 x 120 mm.
• Standard voltage: 400V/50 hz.
