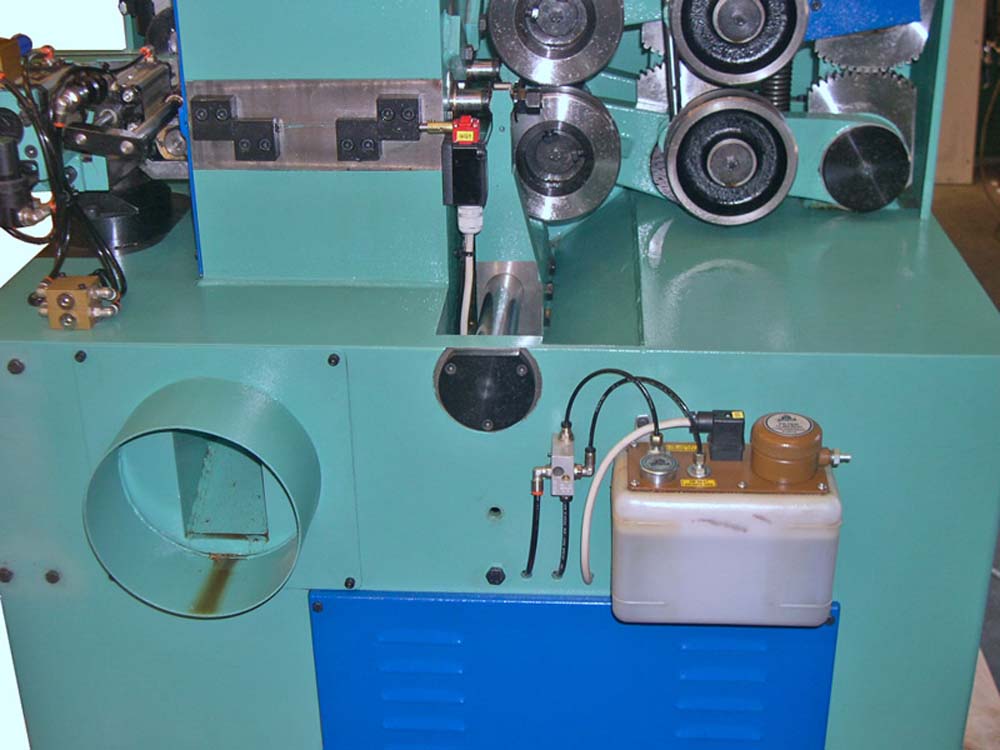

    • Air oil lubrication system of the wood milling shaping machine – TS 60
      Air oil lubrication system of the wood milling shaping machine – TS 60
    • milling cutterhead of the wood milling shaping machine – TS 60
      milling cutterhead of the wood milling shaping machine – TS 60
    • jig for copying system
      jig for copying system

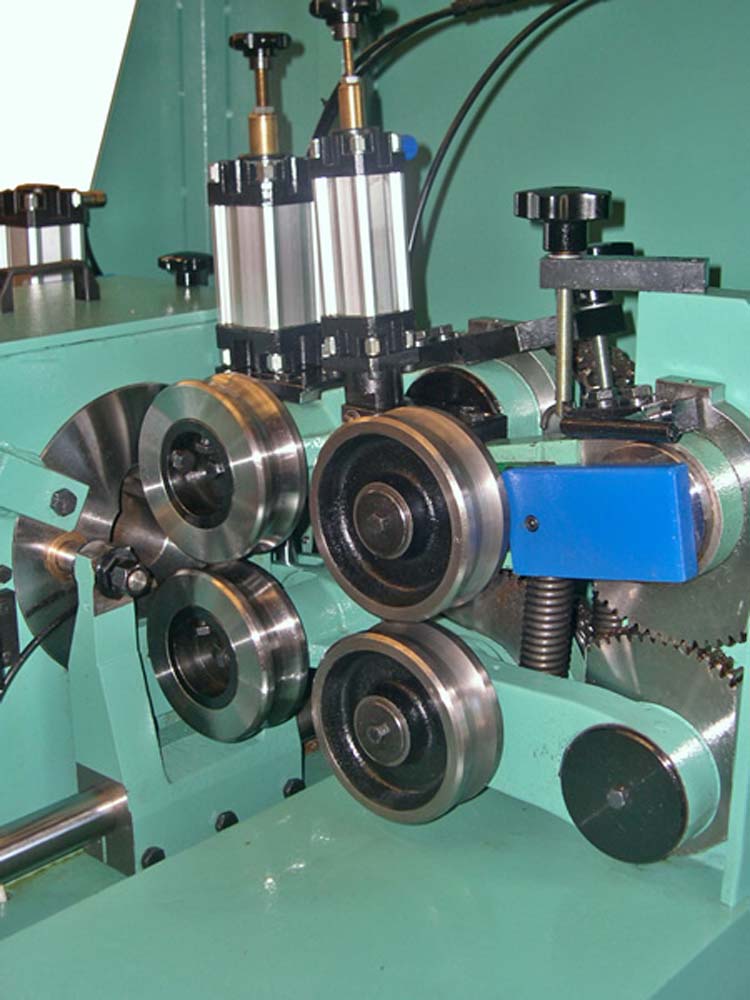

    • Cylinders for back feed rollers
      Cylinders for back feed rollers
  • Air oil lubrication system of the wood milling shaping machine – TS 60
    Air oil lubrication system of the wood milling shaping machine – TS 60
    • Wood milling shaping  machine – TS 60
      Wood milling shaping machine – TS 60
    • Air oil lubrication system of the wood milling shaping machine – TS 60
      Air oil lubrication system of the wood milling shaping machine – TS 60
    • milling cutterhead of the wood milling shaping machine – TS 60
      milling cutterhead of the wood milling shaping machine – TS 60
    • jig for copying system
      jig for copying system
    • Cylinders for back feed rollers
      Cylinders for back feed rollers
  • milling cutterhead of the wood milling shaping machine – TS 60
    milling cutterhead of the wood milling shaping machine – TS 60
    • Wood milling shaping  machine – TS 60
      Wood milling shaping machine – TS 60
    • Air oil lubrication system of the wood milling shaping machine – TS 60
      Air oil lubrication system of the wood milling shaping machine – TS 60
    • milling cutterhead of the wood milling shaping machine – TS 60
      milling cutterhead of the wood milling shaping machine – TS 60
    • jig for copying system
      jig for copying system
    • Cylinders for back feed rollers
      Cylinders for back feed rollers
  • jig for copying system
    jig for copying system
    • Wood milling shaping  machine – TS 60
      Wood milling shaping machine – TS 60
    • Air oil lubrication system of the wood milling shaping machine – TS 60
      Air oil lubrication system of the wood milling shaping machine – TS 60
    • milling cutterhead of the wood milling shaping machine – TS 60
      milling cutterhead of the wood milling shaping machine – TS 60
    • jig for copying system
      jig for copying system
    • Cylinders for back feed rollers
      Cylinders for back feed rollers
  • Cylinders for back feed rollers
    Cylinders for back feed rollers
    • Wood milling shaping  machine – TS 60
      Wood milling shaping machine – TS 60
    • Air oil lubrication system of the wood milling shaping machine – TS 60
      Air oil lubrication system of the wood milling shaping machine – TS 60
    • milling cutterhead of the wood milling shaping machine – TS 60
      milling cutterhead of the wood milling shaping machine – TS 60
    • jig for copying system
      jig for copying system
    • Cylinders for back feed rollers
      Cylinders for back feed rollers
  • Wood milling shaping  machine – TS 60
  • Air oil lubrication system of the wood milling shaping machine – TS 60
  • milling cutterhead of the wood milling shaping machine – TS 60
  • jig for copying system
  • Cylinders for back feed rollers

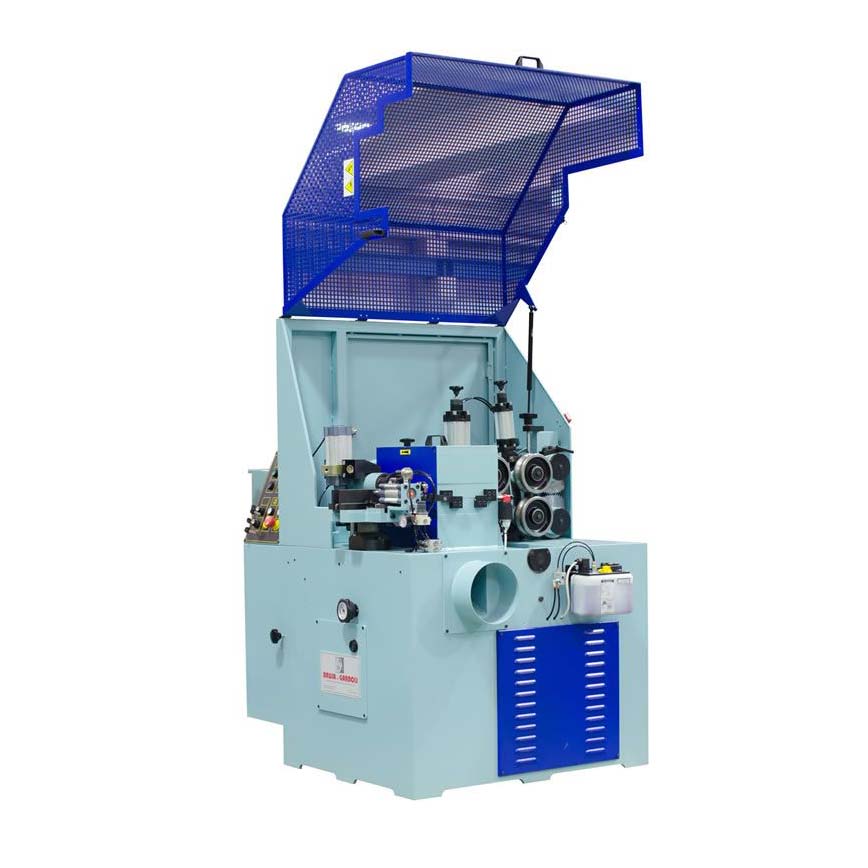

Wood milling shaping machine – TS 60


Machine for the production of wood pick handles

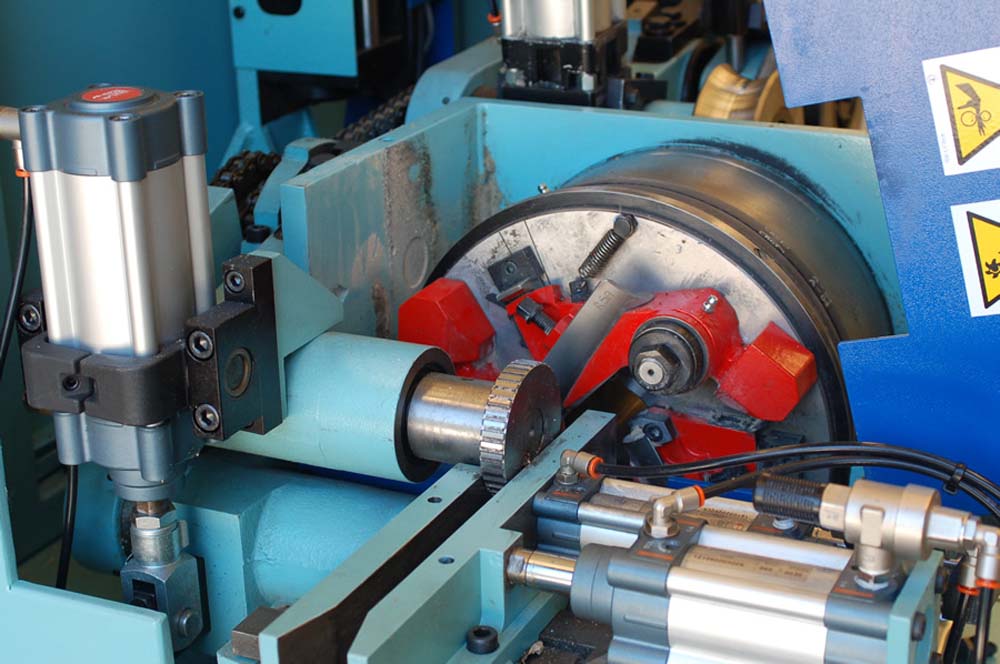

Wood  turning  machine  suitable for straight or  slightly bent round dowels both shaped and  taper  ones with  diameters  range  from 12 to 56 mm.;  this  unit works with a cutterhead  with  3  adjustable knives that  can  change  diameter during  the working process of  the  machine making a  shaped  profile through a  cam (jig) system.

Such machine  is  particularly suitable for  the  production of  straight, bent and  shaped  wooden  handles  for  agricultural  tools,  like  shovel  handles,  hoe  handles, fork handles, rake  handles  and  so  on   as  well  as  for  the  production of  sport equipment components, furniture and  chairs fittings, walking sticks or for umbrellas .



Description


Technical data:

Minimum diameter: 12 mm. Productivity: 4/12 mt./min.
Maximum diameter: 56 mm. Motors voltage: 400V/50 Hz.
Minimum lenght: 450 mm. Head rotation motor: 5,5 Kw.
Maximum lenght: 2600 mm. Feed motor: 0,75 Kw.

Wood milling shaping machine – TS 60 accessories:

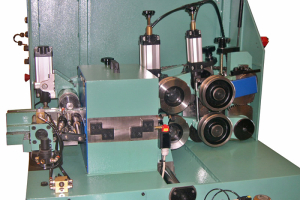

Cylinders For Back Feed Rollers Wood Milling Shaping Machine TS 60

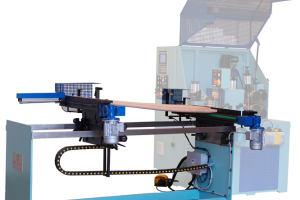

Loader For Wood Square Pieces Wood Milling Shaping Machine TS 60

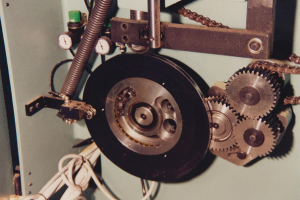

Template For Mechanic Shaping System Wood Milling Shaping Machine TS 60

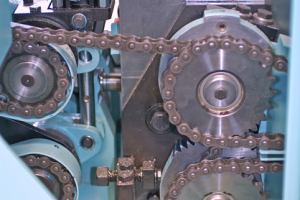

Pivoting Rollers Wood Milling Shaping Machine TS 60

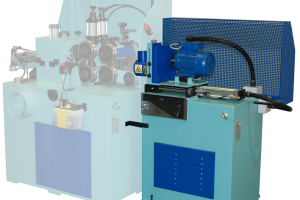

Ja Endshaping Machine Wood Milling Shaping Machine TS 60

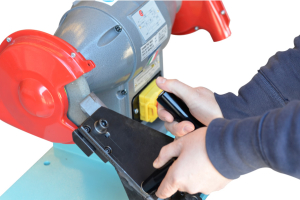

Knife Holder For Resharpener Acs Wood Milling Shaping Machine TS 60

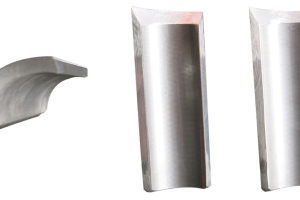

Knives For Wood Wood Milling Shaping Machine TS 60

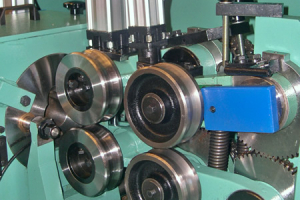

Powered Eject Rollers Wood Milling Shaping Machine TS 60

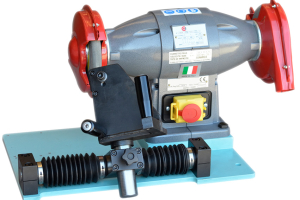

Sharpener For Knives Wood Milling Shaping Machine TS 60

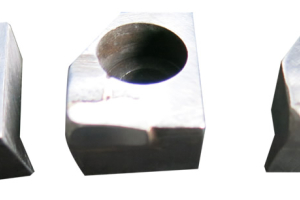

Tips For Wood Centering Wood Milling Shaping Machine TS 60


Video:


Wood milling shaping machine – TS 60 is suitable for production of:

Handle For Shovel Tool

Handle For Shovel Tool

Armrest For Bent Chairs

Armrest For Bent Chairs

Back Rest For Wood Chair

Back Rest For Wood Chair

Curved Fittings For Chairs

Curved Fittings For Chairs

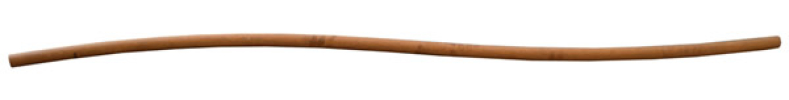

Curved Wood Stair Components
