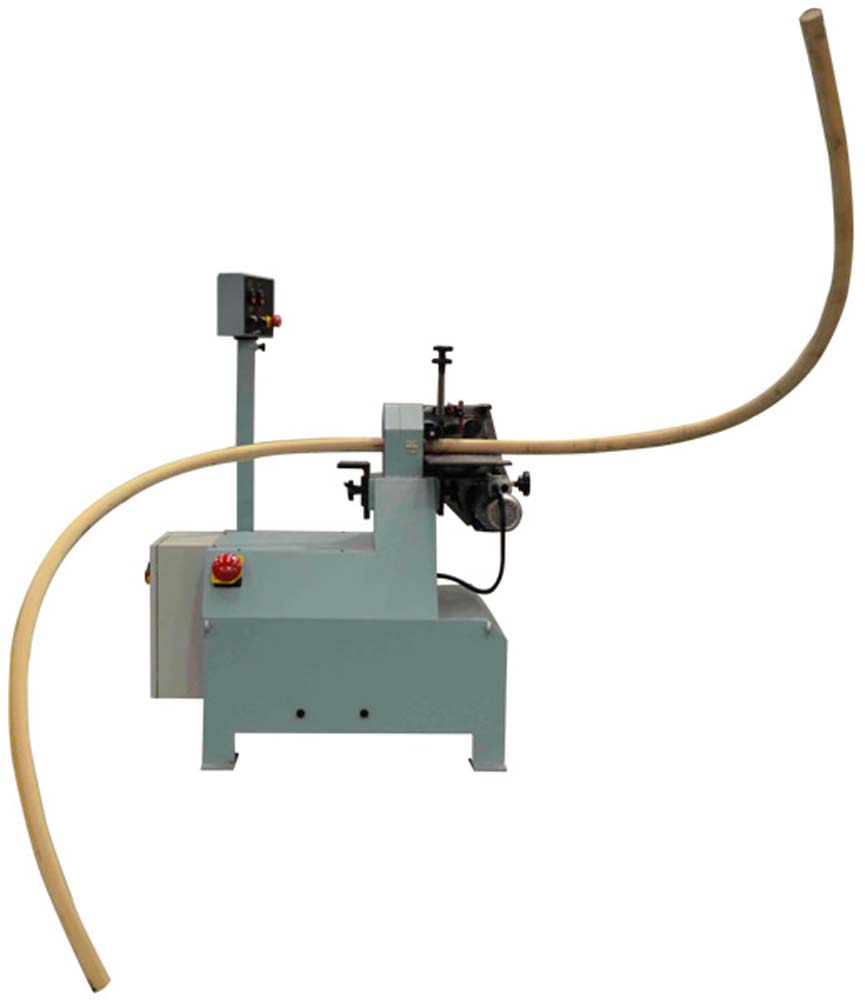

  • Rod dowel machine for bent parts production - TPC 45-60
    Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60

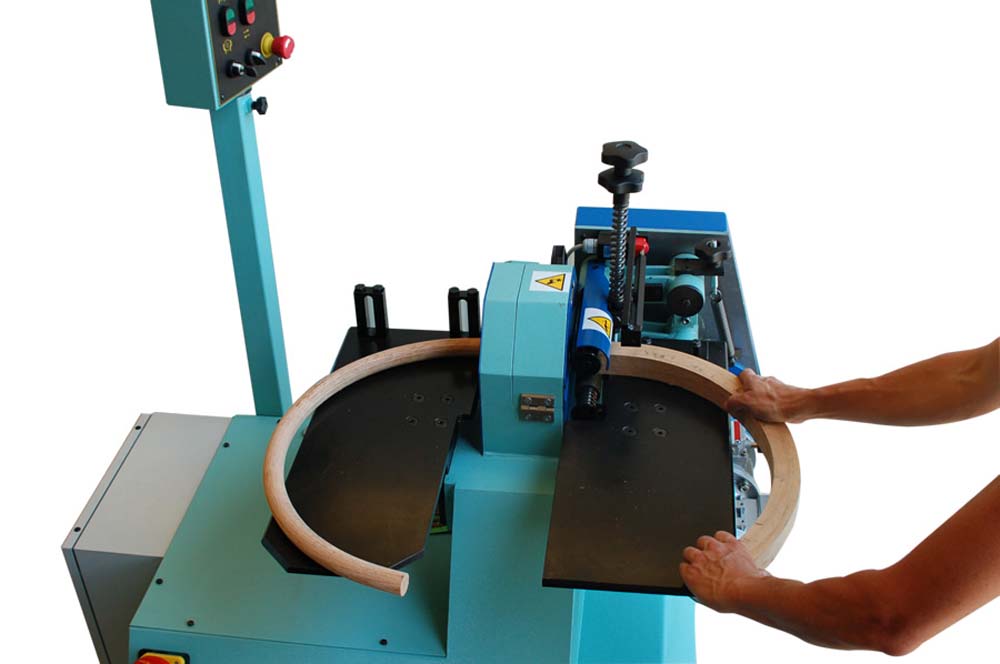

    • Spiral stair fitting process with rod dowel machine TPC 45-60
      Spiral stair fitting process with rod dowel machine TPC 45-60
    • Processed partwith rod dowel machine TPC 45-60
      Processed part with rod dowel machine TPC 45-60
    • Front feed of rod dowel machine TPC 45-60
      Front feed of rod dowel machine TPC 45-60
  • Rod dowel machine for bent parts production - TPC 45-60
    Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Spiral stair fitting process with rod dowel machine TPC 45-60
      Spiral stair fitting process with rod dowel machine TPC 45-60
    • Processed partwith rod dowel machine TPC 45-60
      Processed part with rod dowel machine TPC 45-60
    • Front feed of rod dowel machine TPC 45-60
      Front feed of rod dowel machine TPC 45-60
  • Spiral stair fitting process with rod dowel machine TPC 45-60
    Spiral stair fitting process with rod dowel machine TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Spiral stair fitting process with rod dowel machine TPC 45-60
      Spiral stair fitting process with rod dowel machine TPC 45-60
    • Processed partwith rod dowel machine TPC 45-60
      Processed part with rod dowel machine TPC 45-60
    • Front feed of rod dowel machine TPC 45-60
      Front feed of rod dowel machine TPC 45-60
  • Processed partwith rod dowel machine TPC 45-60
    Processed part with rod dowel machine TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Spiral stair fitting process with rod dowel machine TPC 45-60
      Spiral stair fitting process with rod dowel machine TPC 45-60
    • Processed partwith rod dowel machine TPC 45-60
      Processed part with rod dowel machine TPC 45-60
    • Front feed of rod dowel machine TPC 45-60
      Front feed of rod dowel machine TPC 45-60
  • Front feed of rod dowel machine TPC 45-60
    Front feed of rod dowel machine TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Rod dowel machine for bent parts production - TPC 45-60
      Rod dowel machine for bent parts production - TPC 45-60
    • Spiral stair fitting process with rod dowel machine TPC 45-60
      Spiral stair fitting process with rod dowel machine TPC 45-60
    • Processed partwith rod dowel machine TPC 45-60
      Processed part with rod dowel machine TPC 45-60
    • Front feed of rod dowel machine TPC 45-60
      Front feed of rod dowel machine TPC 45-60
  • Rod dowel machine for bent parts production - TPC 45-60
  • Rod dowel machine for bent parts production - TPC 45-60
  • Spiral stair fitting process with rod dowel machine TPC 45-60
  • Processed partwith rod dowel machine TPC 45-60
  • Front feed of rod dowel machine TPC 45-60

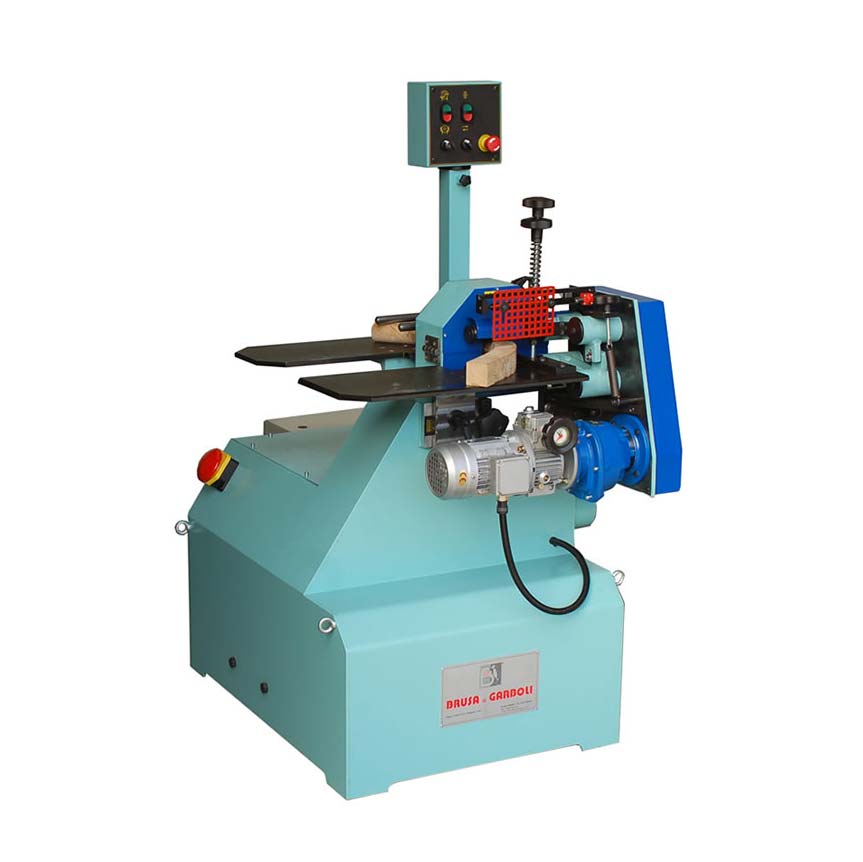

Rod dowel machine for bent parts production - TPC 45-60


Turning machine for wood bent chairs fittings production

Dowel  moulding  machine  for  very  bent items with round section up to max  diameter 45  mm. ( 60 mm. on TPC60) and  minimum bending  radius 90 mm. (180 mm. on TPC60) ; on  this  unit is  possible  to work  with  fix  diameter  tools and  can be operated  with manual  or  automatic  selfcentering  feed  for  parts with constant bending radius.

This  machine  is  particularly  suitable for  the  production  of  very  bent  chairs components or  furniture fittings , as  well  as  for  spiral stairs staircases  and  bent  handrails for  stairs.



Description


Technical data:

Technical data TPC 45 TPC 60
Minimum diameter:  10 mm  10 mm
Maximum diameter:  45 mm  60 mm
Minimum bending radius:  90 mm  180 mm
Productivity (with manual feed):  4 mt./min. 250  mm
Productivity (with AC automatic feed):  2,5/11 mt./min.  2,5/11 mt./min.
Tool rotation motor:  400V/50 Hz. 5,5 Kw
Feed motor:  3 Kw  0,22 Kw
Motors voltage: 400V/50 Hz 400V/50 Hz

Rod dowel machine TPC 45-60 accessories:

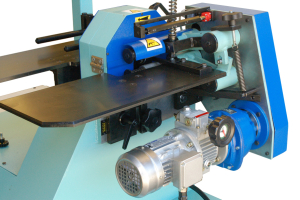

Automatic Feed System Rod Dowel Machine For Bent Parts Production TPC 45 60

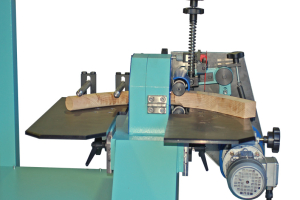

Tpc45 60 Front Feed Device Rod Dowel Machine For Bent Parts Production TPC 45 60

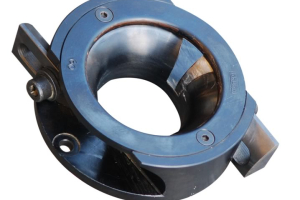

Tpc45 60 Tool Rod Dowel Machine For Bent Parts Production TPC 45 60

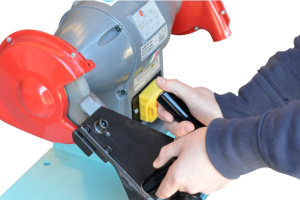

Cutter Holder For Resharpener Rod Dowel Machine For Bent Parts Production TPC 45 60

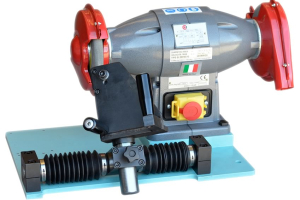

Acs Knife Resharpener Rod Dowel Machine For Bent Parts Production TPC 45 60

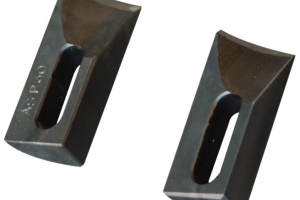

Tpc45 60 Knives Rod Dowel Machine For Bent Parts Production TPC 45 60

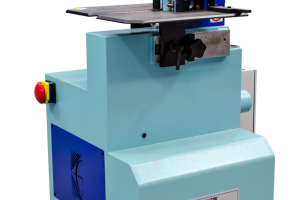

Tpc45


Video:


Rod dowel machine TPC 45-60 is suitable for production of:

Bed Structure

Bed Structure

Backrest For Bent Chair

Backrest For Bent Chair

Backrest For Dolly Chair

Backrest For Dolly Chair

Bent Bed Fittings

Bent Bed Fittings

Bent Chair Components

Bent Chair Components

Bent Round Rod

Bent Round Rod

Bent Stair Handrails

Bent Stair Handrails

Bent Wood Components

Bent Wood Components

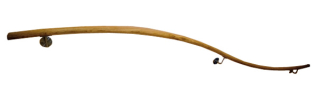

Bent Wooden Handrails

Bent Wooden Handrails

Double Bend Chair Leg

Double Bend Chair Leg

Machines For Thonet Chair Production

Machines For Thonet Chair Production

Stair Bent Components

Stair Bent Components

Stair Fittings

Stair Fittings

Thonet Chair Bent Fittings

Thonet Chair Bent Fittings

Very Bent Wood Fittings

Very Bent Wood Fittings

Wood Spiral Stair

Wood Spiral Stair

Wood Spiral Staircase

Wood Spiral Staircase
