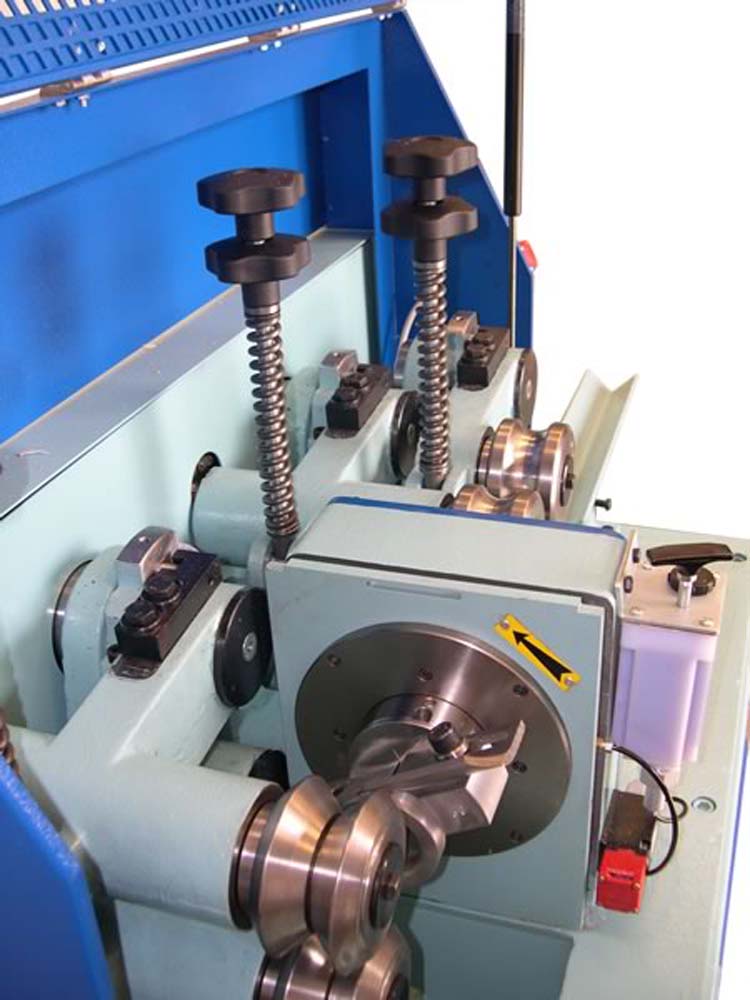

    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production

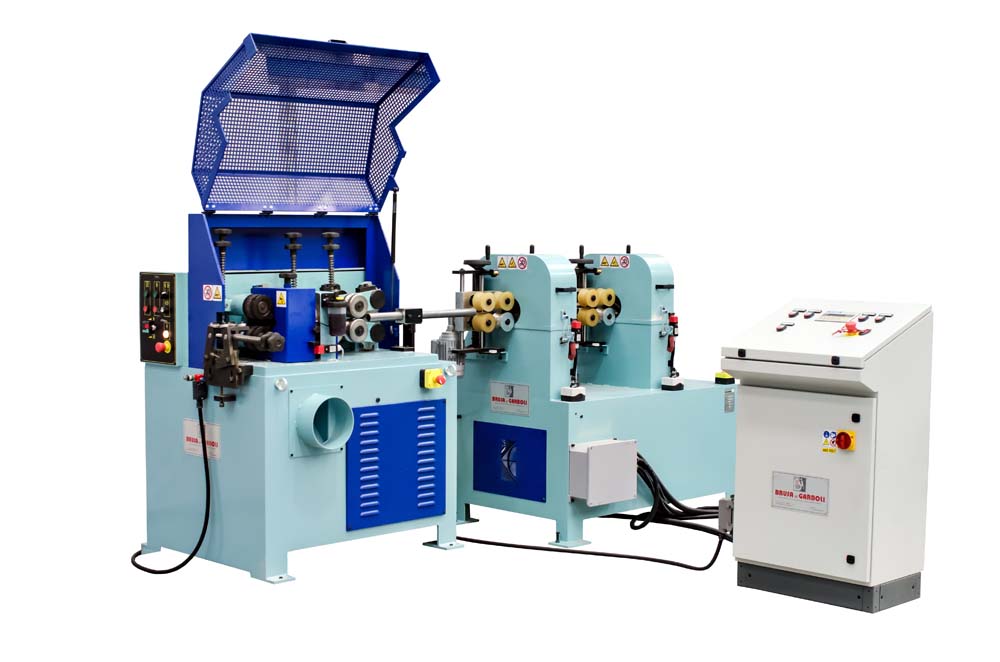

    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine

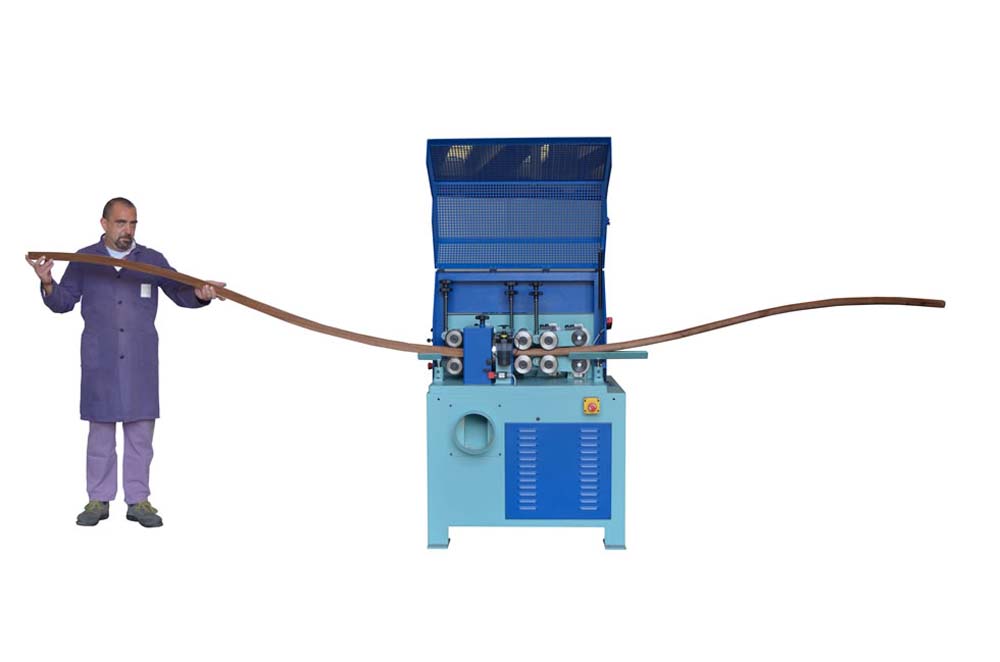

    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails

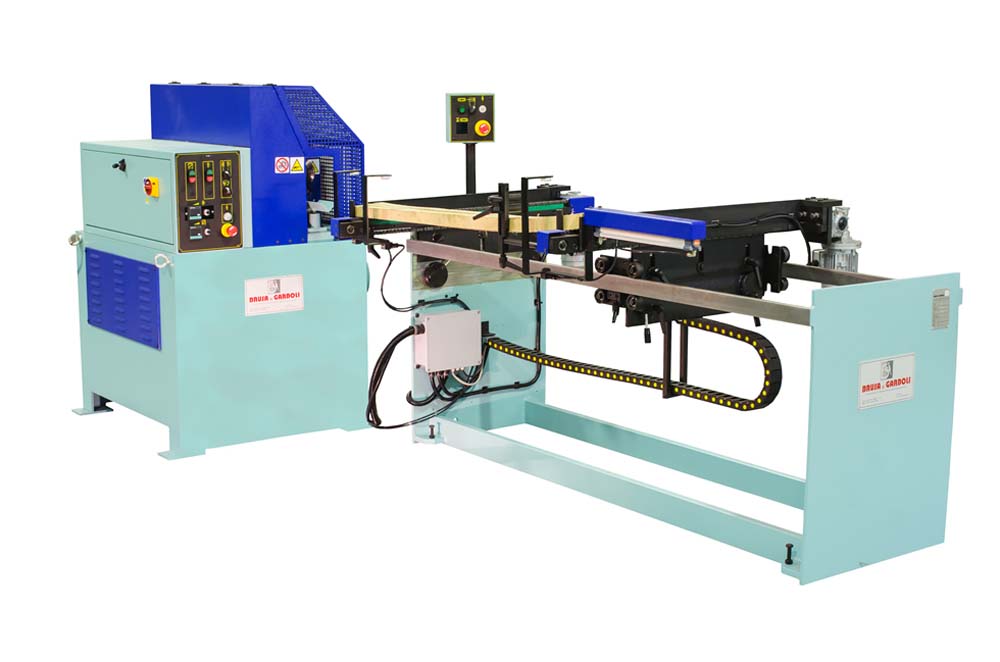

    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • Electric box for TV 45-65-80 milling machine
    Electric box for TV 45-65-80 milling machine
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • Controls box for TV 45-65-80 milling machine
    Controls box for TV 45-65-80 milling machine
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • Rod milling adjustable tool for TV 45-65-80 milling machine
    Rod milling adjustable tool for TV 45-65-80 milling machine
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • TV 45-65-80 rod milling machine for round rod wood production
    TV 45-65-80 rod milling machine for round rod wood production
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • Outfeed rollers for TV 45-65-80 milling machine
    Outfeed rollers for TV 45-65-80 milling machine
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • TV45 machine for wooden handrails
    TV45 machine for wooden handrails
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • TV45 milling machine + CUV automatic loader
    TV45 milling machine + CUV automatic loader
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • Rod milling tool for TV 45-65-80 milling machine
    Rod milling tool for TV 45-65-80 milling machine
    • Milling machine for round rod production - TV 45-65-80
      Milling machine for round rod production - TV 45-65-80
    • Electric box for TV 45-65-80 milling machine
      Electric box for TV 45-65-80 milling machine
    • Controls box for TV 45-65-80 milling machine
      Controls box for TV 45-65-80 milling machine
    • Rod milling adjustable tool for TV 45-65-80 milling machine
      Rod milling adjustable tool for TV 45-65-80 milling machine
    • TV 45-65-80 rod milling machine for round rod wood production
      TV 45-65-80 rod milling machine for round rod wood production
    • Outfeed rollers for TV 45-65-80 milling machine
      Outfeed rollers for TV 45-65-80 milling machine
    • TV45 machine for wooden handrails
      TV45 machine for wooden handrails
    • TV45 milling machine + CUV automatic loader
      TV45 milling machine + CUV automatic loader
    • Rod milling tool for TV 45-65-80 milling machine
      Rod milling tool for TV 45-65-80 milling machine
  • Milling machine for round rod production - TV 45-65-80
  • Electric box for TV 45-65-80 milling machine
  • Controls box for TV 45-65-80 milling machine
  • Rod milling adjustable tool for TV 45-65-80 milling machine
  • TV 45-65-80 rod milling machine for round rod wood production
  • Outfeed rollers for TV 45-65-80 milling machine
  • TV45 machine for wooden handrails
  • TV45 milling machine + CUV automatic loader
  • Rod milling tool for TV 45-65-80 milling machine

Milling machine for round rod production - TV 45-65-80


Machine for the production of wooden bars

Automatic  round doweling machine suitable  for medium and mass production of  STRAIGHT ( and  slightly  curved  on  TV65 and  TV80 models) rods of any wood type as well as  plastic materials, graphite and other materials,  with  diameters  from 5  to  45,65,80  mm. ( depending  from machine type ) ;  on  this  unit  is  possible to  mount fix diameter tools,  to  be  replaced  per  each  different size or an  adjustable  diameter  tool ( for wood only ) to produce  all  sizes  from  10 to 45 mm.( DV45 on  TV45 unit)  or from 15  to 65 mm. ( DV65 on TV65 and TV80) with  same  tooling.

This machine can achieve a  max productivity of 25 mt/minute and  can manufacture brooms handles , agricultural tools handles, umbrella and  walking sticks,  curtains rods, components for sport appliances and  music instruments, fittings for baby cribs, tables, chairs, furniture, handrails,  staircases and  semi-finished products for  further turning process.

On  machine  model  TV65  is  also  possible to  mount  specific tools and  equipment to produce rods with  helicoidal  flutes  from which dowels for  furniture and doors  frames can  be  obtained.



Description


Technical data:

Technical data: TV45 TV65 TV80
Minimum diameter : 5 mm 5 mm 5 mm
Maximum diameter : 45 mm  65 mm  80 mm
Minimum lenght : 350 mm 350 mm 350 mm
Maximum lenght : illimitata illimitata illimitata
Productivity : 2,8/25 mt./min 2/17 mt./min. 1/13 mt./min
Tool rotation motor : 5,5 Kw 5,5 Kw 5,5 Kw
Gear motor : 0,75 Kw 0,75 Kw 0,75 Kw
Motors voltage : 400V/50 Hz 400V/50 Hz 400V/50 Hz

Wood milling machine TV 45-65-80 accessories:

Cuv Loader For Bent Parts Milling Machine For Round Rod Production TV 45 65 80

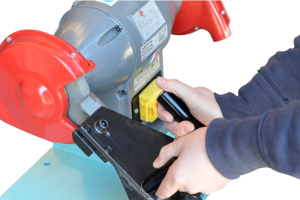

Knives Holder For Knives Resharpener Acs Milling Machine For Round Rod Production TV 45 65 80

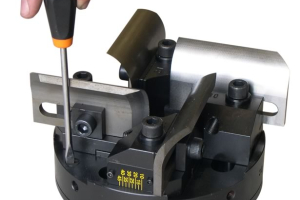

Adjustable Diameter Tool Milling Machine For Round Rod Production TV 45 65 80

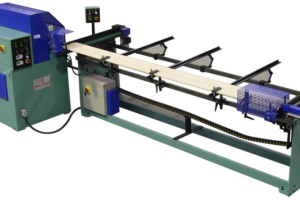

Automatic Loader Cuv Milling Machine For Round Rod Production TV 45 65 80

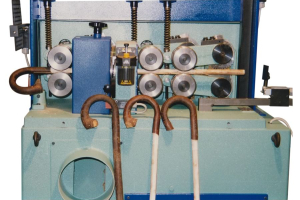

Equipment For Feed Reverse Milling Machine For Round Rod Production TV 45 65 80

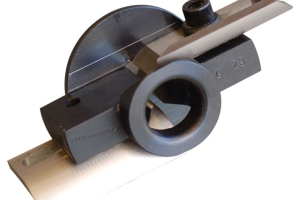

Fix Diameter Tool Milling Machine For Round Rod Production TV 45 65 80

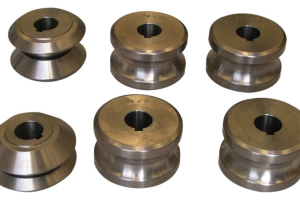

Front And Rear Feed Rollers Milling Machine For Round Rod Production TV 45 65 80

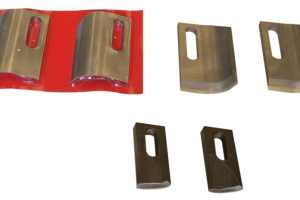

Knives For Tools Milling Machine For Round Rod Production TV 45 65 80


Video:


Wood milling machine TV 45-65-80 is suitable for production of:

Umbrella Wood Sticks

Umbrella Wood Sticks

Wood Balusters

Wood Balusters

Plastic Bar

Plastic Bar

Wood Broom Sticks

Wood Broom Sticks

Beach Umbrella Rod

Beach Umbrella Rod

Wood Shaft For Broom

Wood Shaft For Broom

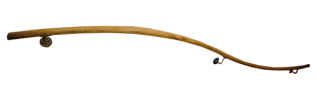

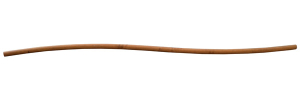

Bent Wood Stair Fittings

Bent Wood Stair Fittings

Round Spindles For Stair

Round Spindles For Stair

Stairs Components

Stairs Components

Wood Arrow Rods

Wood Arrow Rods

Round Leg For Chair

Round Leg For Chair

Wood Round Rods

Wood Round Rods

Milling Machine For  Plastics

Milling Machine For Plastics

Wooden Balusters

Wooden Balusters

Bent Wood Components For Baby Cribs

Bent Wood Components For Baby Cribs

Wood Toys

Wood Toys

Ergonomic Wood Stool

Ergonomic Wood Stool

Design Table Legs

Design Table Legs

Composite Rods

Composite Rods

Graphite Rod

Graphite Rod

Wood Handle For Oars

Wood Handle For Oars

Wood Handles For Shovel

Wood Handles For Shovel

Round Rods For Legs

Round Rods For Legs

Wood Components For Tables

Wood Components For Tables

Bent Wood Handrails

Bent Wood Handrails

Wood Fence Poles

Wood Fence Poles

Wooden Rod For Curtains

Wooden Rod For Curtains

Backrest For Bent Chairs

Backrest For Bent Chairs

Wood Fences

Wood Fences

Wood Bed Frame

Wood Bed Frame

Wood Handle For Rake

Wood Handle For Rake

Metacrylate Rod

Metacrylate Rod

Plastic Bars

Plastic Bars

Wood Stick

Wood Stick

Round Rods Chair

Round Rods Chair

Wood Bar Stool

Wood Bar Stool

Milling Tools For Plastics

Milling Tools For Plastics

Wooden Poles

Wooden Poles

Walking Stick

Walking Stick

Outdoor Wood Playset

Outdoor Wood Playset

Round Rod For Umbrella

Round Rod For Umbrella

Round Rods For Chair

Round Rods For Chair

Wood Rod Dowels

Wood Rod Dowels

Wooden Stool

Wooden Stool

Bent Wood Dowel

Bent Wood Dowel

Round Rods For Umbrella

Round Rods For Umbrella

Round Curtain Rods

Round Curtain Rods

Wood Poles For Outdoor Playset

Wood Poles For Outdoor Playset

Round Bars For Gym Equipment

Round Bars For Gym Equipment

Chair Frame

Chair Frame

Wood Pole For Playset

Wood Pole For Playset

Nylon Rods

Nylon Rods

Bent Round Dowels

Bent Round Dowels

Wooden Rods For Baby Cribs

Wooden Rods For Baby Cribs

Wood Pin Dowels

Wood Pin Dowels

Wood Table Legs

Wood Table Legs

Wood Baby Cribs

Wood Baby Cribs

Wood Rods For Beds

Wood Rods For Beds

Wooden Rods

Wooden Rods

Bent Components For Stairs

Bent Components For Stairs

Logs For Outdoor Playset

Logs For Outdoor Playset

Components For Wood Baby Cribs

Components For Wood Baby Cribs

Wood Gym Equipment

Wood Gym Equipment

Wooden Arrow

Wooden Arrow

Bent Rods For Wood Chairs

Bent Rods For Wood Chairs

Round Wood Handrails

Round Wood Handrails

Brusa & Garboli srl - Special Woodworking Machines
Via dell' Industria, 1 - 28924 - Fondotoce (Verbania) Italy - Tel. +39.0323.586958 - brusadigarboli@brusa.it
P.IVA / VAT Number IT01317520037
