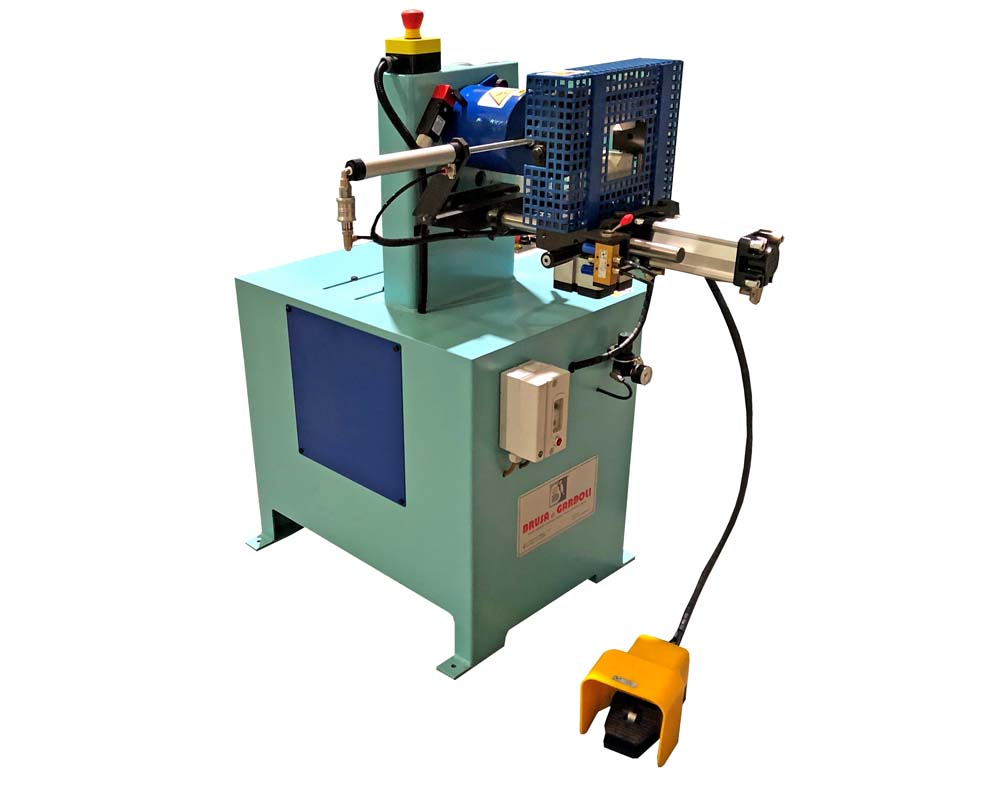

Machine for wood endshaping
Milling machine for endshaping to produce halfround, taper, tenons and special shaped ends on round and square wood components with maximum diameter 60 mm.

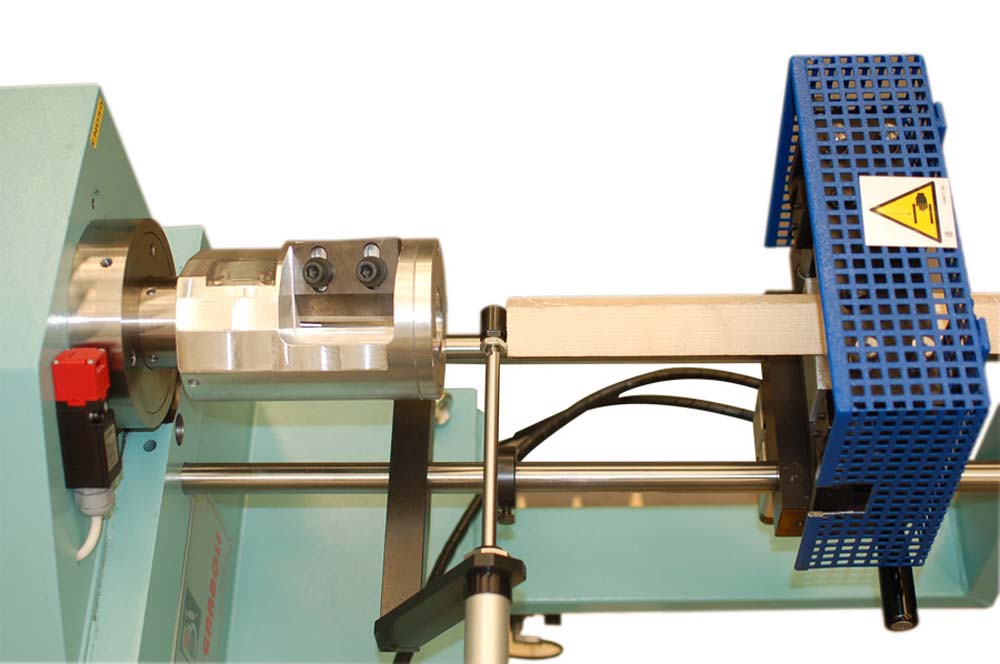

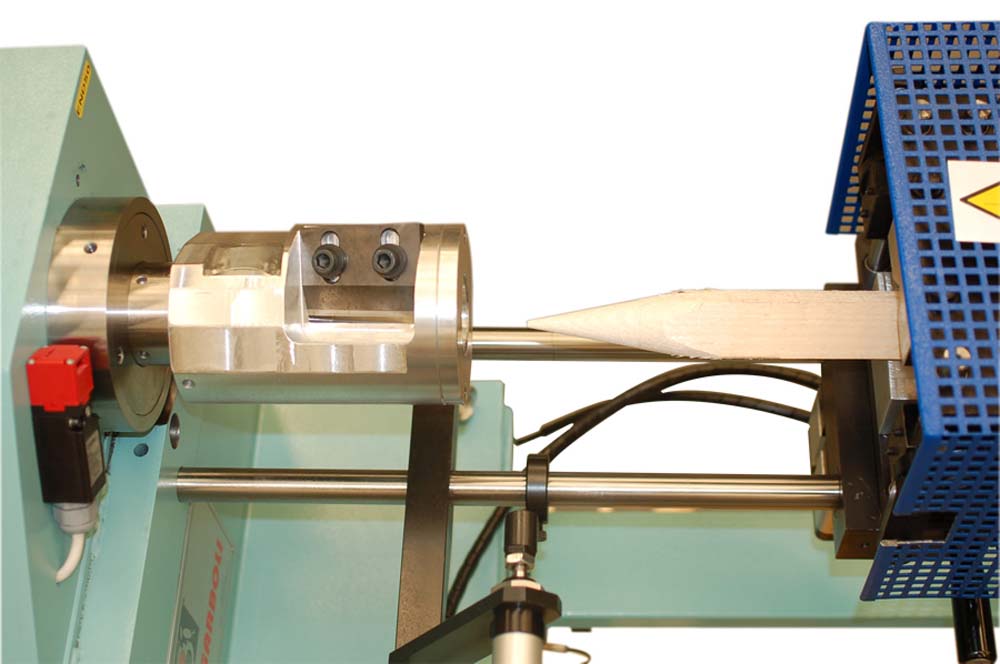

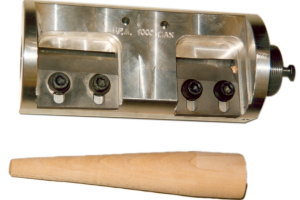

Workpiece under process is blocked through a pneumatic clamping device sliding with manual feed ( or automatic on request) on two guides toward the spindle on which the special shaped tool rotates .
This unit is particularly suitable to produce shaped ends on chairs and furniture components as well as on handles for garden tools.
Technical data:
- Maximum diameter: 60 mm.
- Maximum length: 100 mm.
- Feed: manual feed
- Motor power: 1,5 Kw.

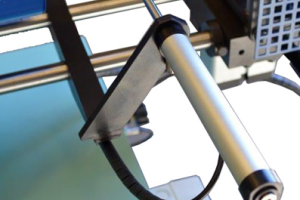

- Air pressure for clamping device: 6 Bar
- Standard voltage: 400V/50 Hz.
Wood endshaping machine – END 50 accessories:
Wood endshaping machine – END 50 is suitable for production of:
Beach Umbrella
Bent Fittings For Baby Cribs
Bent Handrails
Bent Round Rod
Broom Handles
Broom Stick Shaped Ends
Brush Wood Handle
File Wood Handles
Legs For Chairs
Pick Handles
Rake Handles
Round Chair Legs
Shovel Wood Handle
Table Legs
Wood Arrows
Wood Billiard Cues
Wood Chair Frame
Wood Feet For Bed
Wood Hammer Handles
Wood Nutcracker
Wood Paddles Oars
Wood Shaft For Umbrella
Wood Spade Handle
Wooden Stool
