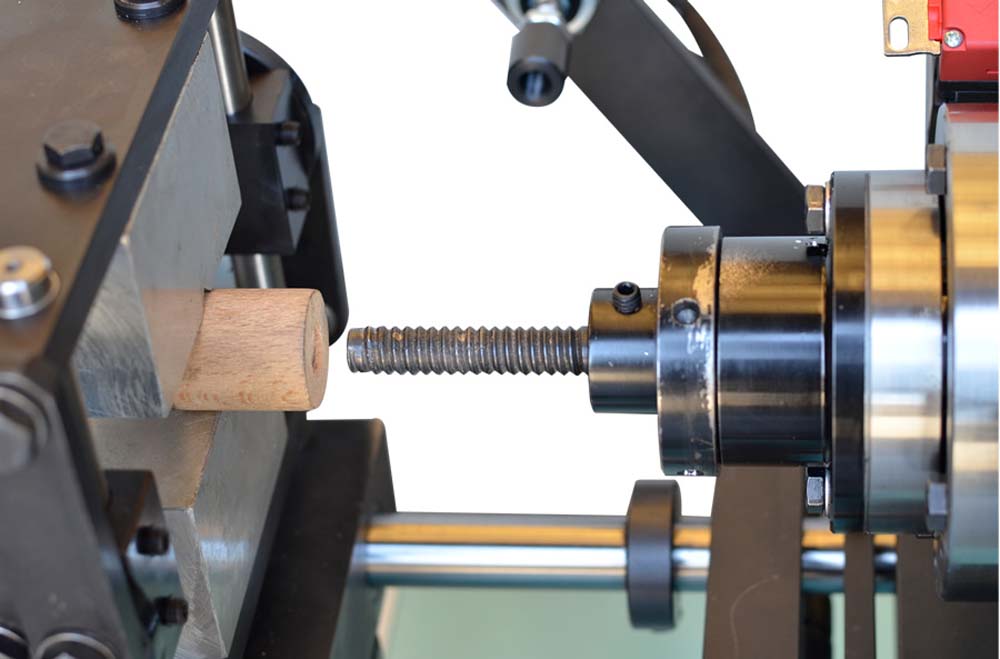

  • Internal threading of the wood threading machine – FIL 30-50

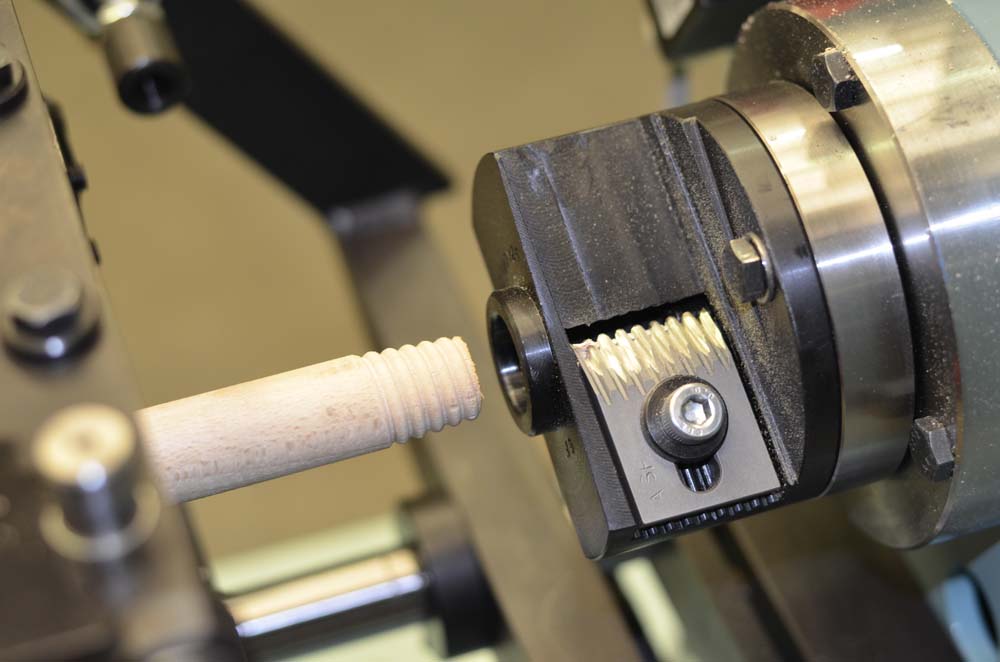

  • External threading of the wood threading machine – FIL 30-50

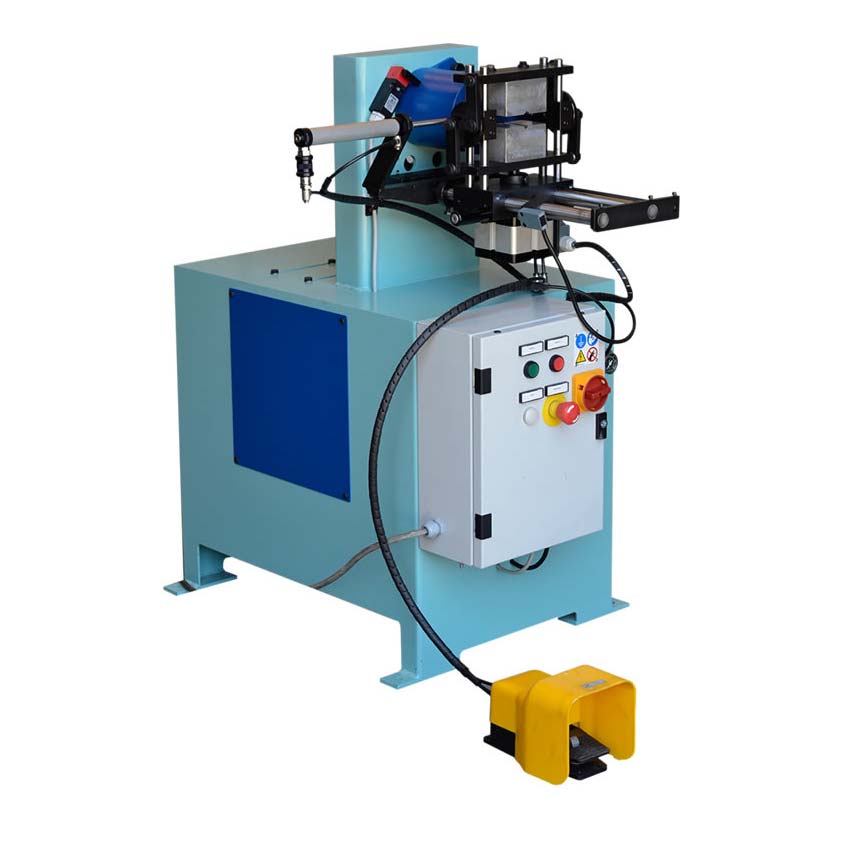

Wood threading machine – FIL 30-50


Machine for wood threaded bars production

Special  machine  for  inside  ( blind  or  through) and  outside  threading  on  wooden and  plastic  components up  to diameter  30 mm. (or  50 mm. in  case of  FIL 50  special  version)

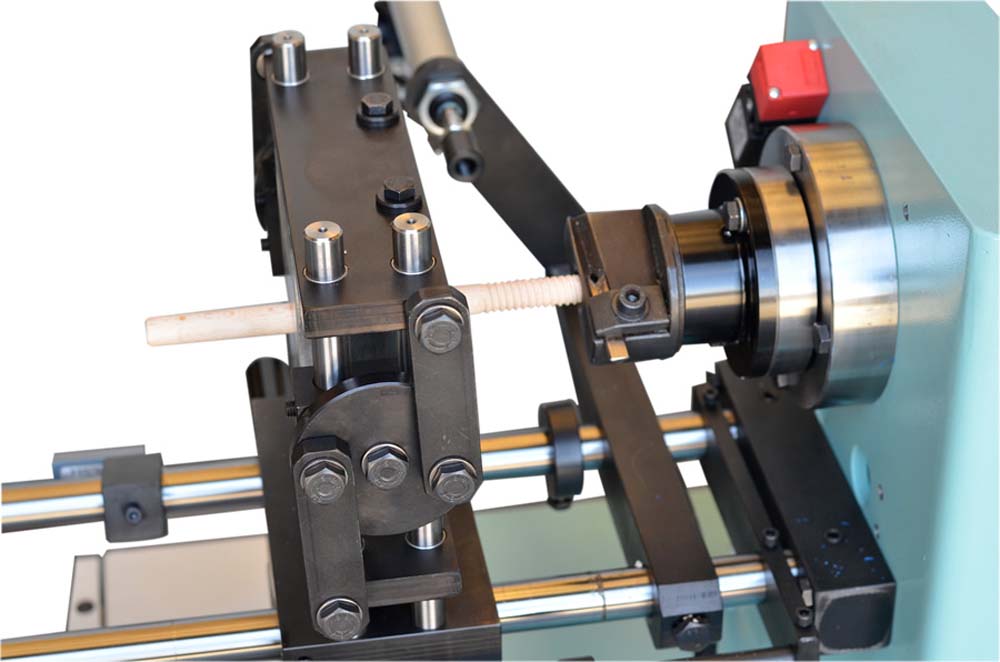

Workpiece  under process is blocked  through a  pneumatic  clamping device  sliding with  manual feed on  two  guides toward  the  spindle  on  which the  special tap screw or screw plate tool rotates.

Taper external  threads are  also  possible  and machine  mounts a specific  electric  device  for  automatic tool spindle rotation  reverse .
Tool  must  be  replaced  for  each  different  size  or  pitch  to  be  manufactured.

Machine  is  particularly suitable  to  produce  threads on  chairs and furniture components, wooden toys, broom  handles, agricultural tool handles or painting handles.



Description


Technical data:

Minimum diameter: 12 mm. Motor power: 0,37 Kw.
Maximum diameter: 30 mm. (50 mm. on FIL50 unit) Air pressure for clamping device:  6 Bar
Feed: manual feed Standard voltage: 400V/50 Hz.

Wood threading machine – FIL 30-50 accessories:

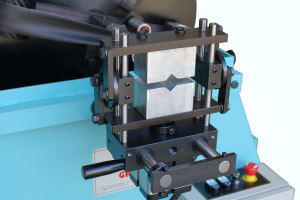

Pneumatic Clamping Device Wood Threading Machine FIL 30 50

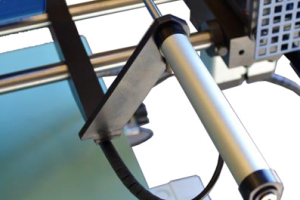

Pneumatic Positioning Cylinder Wood Threading Machine FIL 30 50

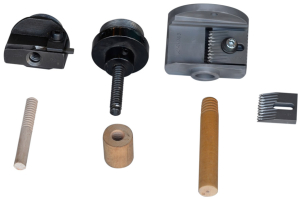

Wood Threading Tools Wood Threading Machine FIL 30 50


Video:


Wood threading machine – FIL 30-50 is suitable for production of:

Broom Handle Thread

Broom Handle Thread

Screw Thread For Stool

Screw Thread For Stool

Wood Screw Thread

Wood Screw Thread

Threaded Rods

Threaded Rods

Wood Screw

Wood Screw

Wood Screws

Wood Screws

Wooden Bolts

Wooden Bolts
